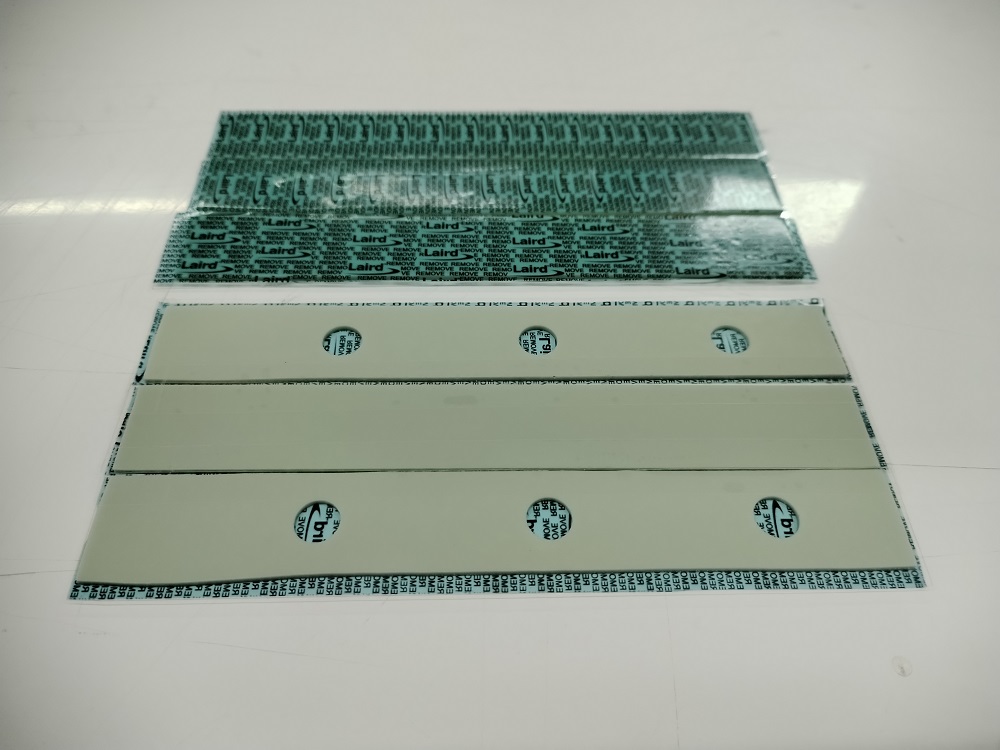

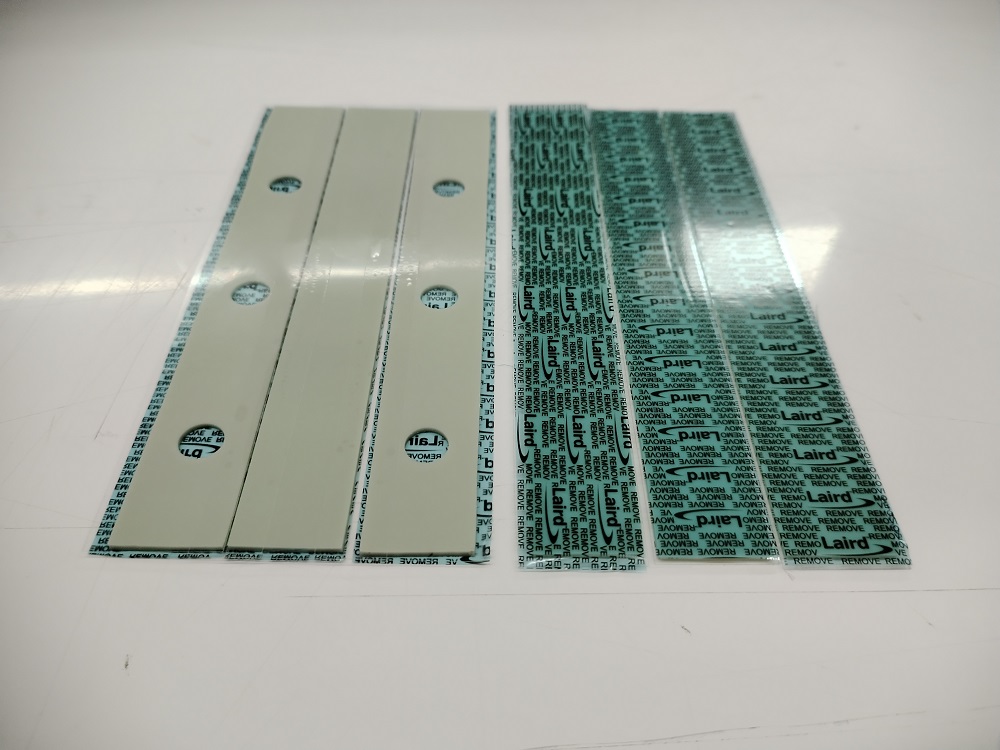

Laird Tflex 300 Tflex360返回


    Laird Tflex 300, at pressures of 50psi, will deflect to over 50% the original thickness. This high rate of

    compliancy allows the material to “totally blanket” the component, enhancing thermal transfer.

    The material has a very low compression set enabling the pad to be reused many times.



资料下载



Laird Tflex360 Tflex 300

Thermal Gap Filler

Laird Tflex 300, in achieving its stellar compliancy, does not sacrifice thermal performance. With a

thermal conductivity of 1.2 W/mK, low thermal resistances can be achieved at low pressures.

Laird Tflex 300H is offered with a hard, metallized liner option for easy handling and improved

rework. The metallized liner’s lower coefficient of friction also allows for easy assembly of parts

that must slide together, such as a card into a chassis.

Laird Tflex 300TG is offered with a cut-through resistant Tgard™ silicone liner. The TG liner offers a

guaranteed dielectric barrier, and easier part handling for mass production.

FEATURES AND BENEFITS

• Extreme compliancy allows material to “totally blanket” components

• Thermal conductivity of 1.2 W/mK

• Low compression set enables the pad to be reused many times

• Environmentally friendly solution that meets regulatory requirements including RoHS and

REACH

AVAILABILITY

STANDARD THICKNESSES

• 0.5mm (0.020”) to 5.0mm (0.200”) thick material available in 0.25mm (0.010”) increments

• Available in standard sheet sizes of 18” x 18” and 9” x 9” or custom die cut parts

OPTIONS

• DC1 proprietary tack eliminated coating

Tgard“TG” dielectric barrier available to aid in handling and PET dielectric “H” liner available for applications for easy slide assembly

PART NUMBER SYSTEM

Tflex indicates Laird elastomeric thermal gap filler product line. 3xxx indicates Tflex 300 product line with thickness in mils (0.001”)

EXAMPLES:

• Laird Tflex 340 = 0.040 inch thick Tflex™ 300 material

• laird  Tflex 380DC1 = 0.080 inch thick Tflex™ 300 material with DC1 coating

• Laird  Tflex 3120TG = 0.120 inch thick Tflex™ 300 material with Tgard™ liner

• Laird  3200H = 0.200 inch thick Tflex™ 300 material with hard PET liner
