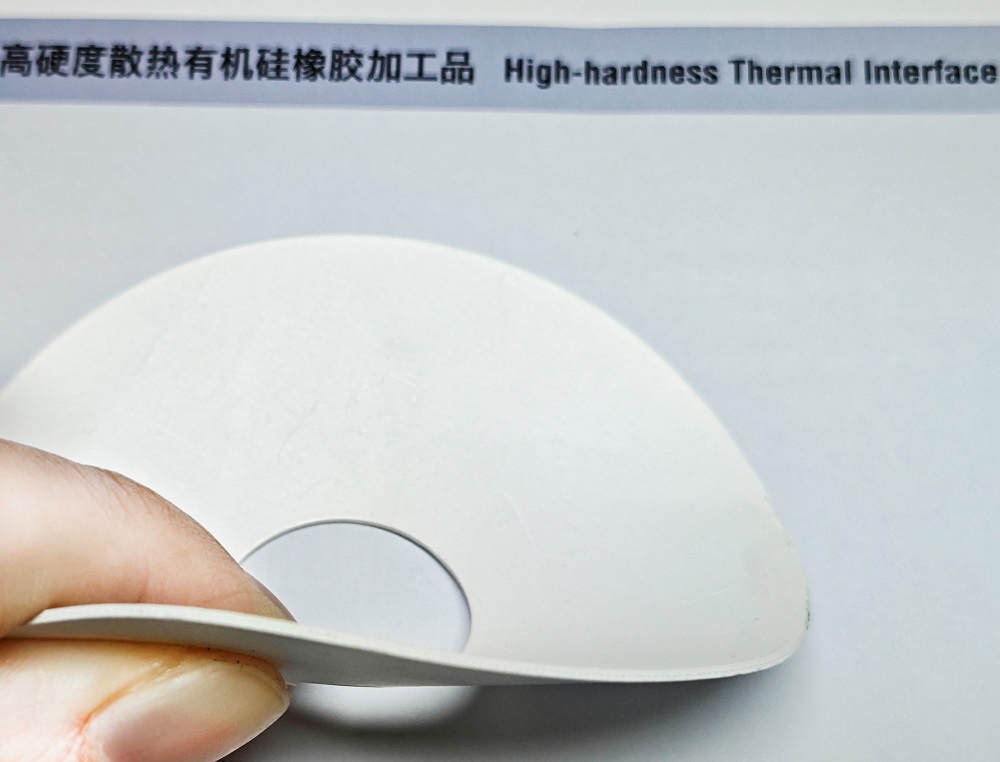

Shin-Etsu TC-BG series pads are thermally conductive pads designed to

thermally connect electronic components to their heat sinks.

The TC-BG series pads exhibit exceptional thermal conductivity and fiberglass

reinforcement for superior strength and hardness.

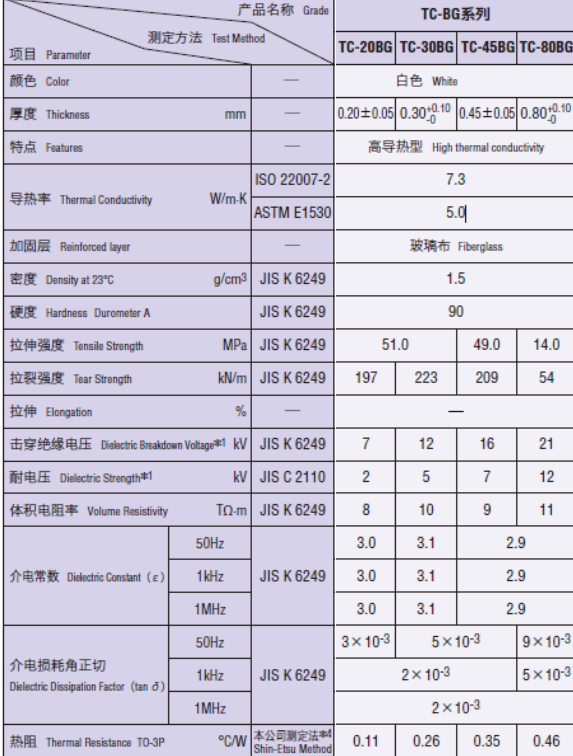

Shin-Etsu TC-20BG

Shin-Etsu TC-30BG

Shin-Etsu TC-45BG

Shin-Etsu TC-80BG

Product Features

1.Exceptional thermal conductivity

2.0.20, 0.30, 0.45, and 0.80mm thicknesses available

3.Excellent electrical properties

4.Superior strength and hardness

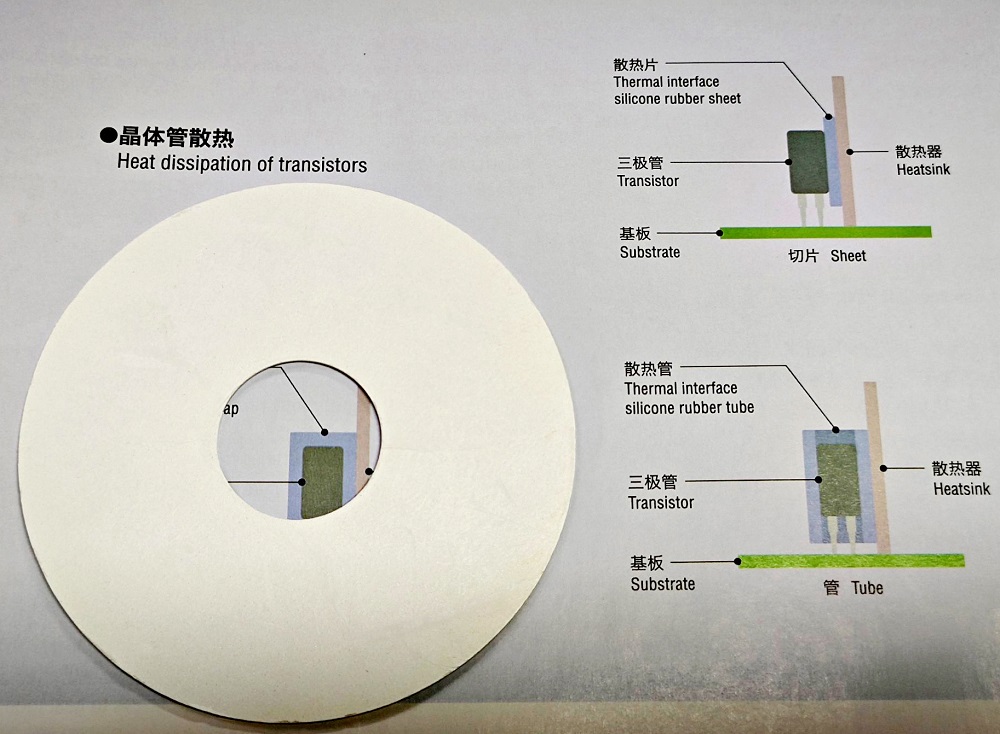

Typical Applications

1.Vehicle inverters/converters

2.Power Transistors

3.Power Modules

4.LED Modules
